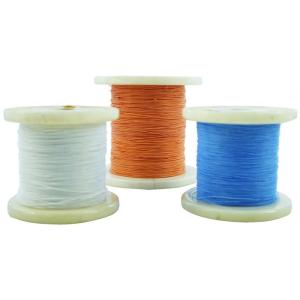

High Temperature Ultra Thin PTFE Hook Up Wire
Application: PTFE Wire is used for Oil equipment, Electric machinery, Automotive cables, Outdoor lighting, PTC thermistors, Electric components etc.
PTFE Cable can be used in temperature compensating wire, low temperature-resist wire, high temperature heat wire, aging-resistance wire and fire-resist wire; household appliances industry, It can be used in air-conditioning equipment, micro-wave oven, electric disinfectant cupboard, electric cooker, electric thermos, electric heater, electric oven, lamps and lanterns in their inner wire and so on.
Product Features:
Good corrosion-resistance,almost doesn't melt any organic imp regnant,Oil-resistance,strong acid-resistance, strong alkali-resistance,oxidant-resistance and so on. bear the good electric insulated capability, high voltage-resist,moisture-resistance,high insulation resistance; flame-retardant, Anti-ageing, long age of usage.
Cable Specifications:
| Conductor Materials | Silver Plated Copper or Bare Copper |
| Conductor Type | Stranded or Solid |
| Insulation | |
| Number Core | Single Core or Multiple Cores |
| Size | 0.05~4mm2 |
| Rated Voltage | 600V or Below |
| Rated Temperature | -80~+250ºC |
| Color | White, Blue, Red, Black, Yellow, Green, Transparent, Yellow/Green |
Type and Name:
| Type | Name |
| AFR-200 | Bare Copper wire conductor PTFE film insulated lead wire |
| AFR-250 | Silver plated copper wire conductor PTFE film insulated lead wire |
| AFP | Bare Copper wire conductor PTFE film insulated screen lead wire |
| AFP-1 | Silver plated copper wire conductor PTFE film insulated screen lead wire |
| AFRP-200 | Bare Copper wire conductor PTFE film insulation shield lead wire |
| AFRP-250 | Silver plated wire copper conductor PTFE film insulation shield lead wire |
| AFRPF-250, AFPF | Silver plated wire copper conductor PTFE film insulation PTFE film sheath shield lead wire |
| Wire gauge | Cross-section area | Conductor structure | Max.resistance at 20℃ | Max.OD of wire mm | Reference weight kg/km | ||
| AF-250 | AFP-250 | AF-250 | AFP-250 | ||||
| AWG | mm | mm | Ω/KM | 600V | 600V | 600V | 600V |
| 36AWG | 0.012 | 7/0.05 | 1450 | 0.85 | 1.3 | 0.98 | 3.43 |
| 32AWG | 0.035 | 7/0.08 | 580 | 0.95 | 1.4 | 1.37 | 4.08 |
| 30AWG | 0.05 | 7/0.10 | 380 | 1.05 | 1.6 | 1.67 | 4.63 |
| 28AWG | 0.07 | 7/0.12 | 260 | 1.1 | 1.65 | 2.02 | 5.12 |
| - | 0.1 | 7/0.14 | 180 | 1.2 | 1.75 | 2.42 | 5.76 |
| 26AWG | 0.14 | 7/0.16 | 130 | 1.3 | 1.95 | 2.85 | 6.71 |
| 24AWG | 0.2 | 19/0.12 | 84.5 | 1.4 | 1.98 | 3.85 | 8.22 |
| - | 0.3 | 19/0.14 | 61 | 1.48 | 2.05 | 5.65 | 10.3 |
| 22AWG | 0.35/0.40 | 19/0.16 | 49.5 | 1.6 | 2.2 | 5.74 | 10.5 |
| - | 0.5 | 19/0.18 | 37.1 | 1.8 | 2.4 | 7.39 | 12.2 |
| 20AWG | 0.6 | 19/0.20 | 30.1 | 1.98 | 2.5 | 10.7 | 16.1 |
| - | 0.75/0.80 | 19/0.23 | 22.7 | 2.1 | 2.6 | 10.9 | 16.3 |
| 18AWG | 1 | 19/0.26 | 19 | 2.2 | 2.9 | 13.3 | 19.2 |
| 16AWG | 1.2 | 19/0.28 | 15.3 | 2.4 | 3.1 | 15 | 21.4 |
| - | 1.5 | 19/0.32 | 11.7 | 2.6 | 3.3 | 19.7 | 28.1 |
| 14AWG | 2 | 19/0.37 | 9.45 | 2.9 | 3.6 | 25.2 | 34.5 |
| - | 2.5 | 37/0.30 | 7.4 | 3.6 | 4.2 | 33 | 43.8 |
| 12AWG | 3 | 37/0.32 | 6.03 | 3.5 | 4.3 | 36.9 | 48.1 |
| - | 4 | 37/0.37 | 5 | 3.9 | 4.7 | 47.5 | 63.2 |
| 10AWG | 5 | 37/0.41 | 4.1 | 4.37 | 5.17 | 47.5 | 63.2 |
| - | 6 | 49/0.39 | 3.3 | 5 | 5.9 | 70.1 | 88.6 |
Noted:Extruded ptfe cable core No. and specification are not limited to the above regulation,they could be customized.
