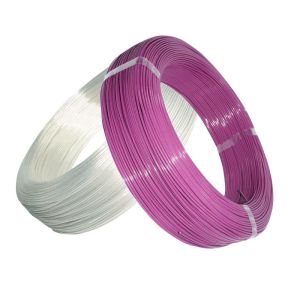

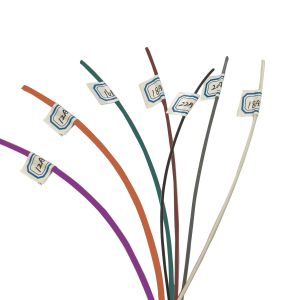

FEP Insulation Wires has excellent corrosion resistance, oil resistance, strong acid resistance, strong alkali resistance, strong oxidant, etc. Excellent electrical insulation performance, high voltage resistance, high frequency loss, no moisture absorption, insulation resistance; Excellent fire resistance, aging resistance, long service life.
Electronic industry,Fluorineplastic FEP Electrical Wires can be used for temperature compensation wire, low temperature wire, high temperature heating wire, aging wire and flame retardant wire; In the household electric appliance industry, it can be used for the internal wiring of air conditioner, microwave oven, electronic disinfection cabinet, electric rice bun, electronic hot water bottle, electric heater, electric oven, electric frying pan, lamps and lanterns, etc.
Product Features:
Wear resistant, scratch resistant, easy to rip off, high and low temperature resistant, anti-aging, corrosion resistant, anti-interference.
Cable Specifications:
| Conductor Materials | Tinned Plated Copper, Silver Plated Copper, Bare Copper |
| Conductor Type | Stranded or Solid |
| Number Core | Single Core or Multiple Cores |
| Insulation | |
| Rated Voltage | 600V or Below |
| Rated Temperature | -65C~+200ºC |
| Color | White, Blue, Red, Black, Yellow, Green, Transparent, Yellow/Green.. |
| Type | Name |
| AF-200 | Silver Plated Copper Core FEP Insulation Install Wire |
| AF-200-1 | Tin Plated Copper Core FEP Insulation Install Wire |
| AFP-200 | Tin Plated or Silver Plated Copper Core FEP Insulation Shield Install Wire |
| AFS-200 | Tin Plated or Silver Plated Copper Core FEP Insulation Stranded Install Wire |
| AFSP-200 | Tin Plated or Silver Plated Copper Core FEP Insulation Stranded Shield Install Wire |
Cable Structures:
| Wire gauge | Cross-section area | Conductor structure | Max. OD of cable | |||
| AF-200 AF-200-1 | AFP-200 | |||||
| AWG | mm2 | mm | 250V | 600V | 250V | 600V |
| 36AWG | 0.013mm2 | 7/0.05 | 0.65 | 0.85 | 1.1 | 1.3 |
| 32AWG | 0.035mm2 | 7/0.08 | 0.75 | 0.95 | 1.2 | 1.4 |
| 30AWG | 0.05mm2 | 7/0.10 | 0.85 | 1.05 | 1.35 | 1.6 |
| 28AWG | 0.07mm2 | 7/0.12 | 0.9 | 1.1 | 1.4 | 1.65 |
| - | 0.1mm2 | 7/0.14 | 1 | 1.2 | 1.55 | 1.75 |
| 26AWG | 0.14mm2 | 7/0.16 | 1.1 | 1.3 | 1.65 | 1.95 |
| 24AWG | 0.2mm2 | 19/0.12 | 1.2 | 1.4 | 1.75 | 1.98 |
| - | 0.3mm2 | 7/0.23 | 1.25 | 1.48 | 1.8 | 2.05 |
| 22AWG | 0.35/0.40mm2 | 19/0.16 | 1.4 | 1.6 | 1.95 | 2.2 |
| 20AWG | 0.5mm2 | 19/0.18 | 1.6 | 1.8 | 2.2 | 2.4 |
| - | 0.6mm2 | 19/0.20 | 1.75 | 1.98 | 2.3 | 2.5 |
| - | 0.75/0.80mm2 | 19/0.23 | 1.8 | 2.1 | 2.4 | 2.6 |
| 18AWG | 1mm2 | 19/0.26 | 2 | 2.2 | 2.6 | 2.9 |
| 16AWG | 1.2mm2 | 19/0.28 | 2.2 | 2.4 | 2.8 | 3.1 |
| - | 1.5mm2 | 19/0.32 | 2.4 | 2.6 | 3.1 | 3.3 |
| 14AWG | 2mm2 | 19/0.37 | 2.7 | 2.9 | 3.4 | 3.6 |
| - | 2.5mm2 | 37/0.30 | 3.4 | 3.6 | 4.2 | 4.4 |
| 12AWG | 3mm2 | 37/0.32 | 3.6 | 3.8 | 4.4 | 4.6 |
| - | 4mm2 | 37/0.37 | 4 | 4.2 | 4.8 | 5.1 |
| 10AWG | 5mm2 | 37/0.41 | 4.5 | 4.7 | 5.3 | 5.6 |
| - | 6mm2 | 37/0.45 | 4.8 | 5 | 5.7 | 5.9 |
| 8AWG | 8mm2 | 133/0.28 | 6 | 6.5 | 6.8 | 7.3 |
Noted:FEP high temperature lead wire specification and core no. are not limited to above regulation,they could be customized.
Xiangtan Shenzhou Special Cable Co., LTD is a stable wire and cable supplier of China's aerospace and military, 21 years experience. Cable compounds produced by ourselves, that is why we can keep superior quality and competitive offers for global valued customers. Our Main products are: High Temperature wires, PTFE cable, FEP Cable, PFA Wire, ETFE Cable, Fluoroplastic Cables, Hook up wire, electronic cable, Power cable and so on. Also we have advanced production facility and integrated management system, we also have good cooperation with many universities and research institutes in addition we can customize the cable according to customer's demand. So best quality and cheapest price we can provide you.
In the past years,We participated in the Middle East Electricity Exhibition in Dubai,China-ASEAN Exposition,Power-Gen India...
As a professiable wire and cable manufacturer, Xiangtan Shenzhou Special Cable CO.,LTD has exported the products to US, Venezuela, India, Vietnam, Bengal, Africal and some other countries. We warmly weclome the delegation from Ezeagu Goverment of Nigeria visit our factory in 2017, they are long-time partner of our company.
Our Honors:
1. Xiangtan Shenzhou Special Cable Co., Ltd Take the task of China manned space flight project develpment, construction and replated cooperation for Shenzhou 7 manned space flight completed success.
2. Xiangtan Shenzhou Special Cable Co., Ltd carried out the project China manned space project development, construction and test task, for first manned flight task complete success.
3. China Academy of Launch Vehicle Technology Institution: The "Arrow of God" project for the first time China's astronaut taking the outer space exploration.
Our Service
1. Free technical consultation service before, during, and after sales,help customers to choose right product
2. Free sample and design services
3.Fee service for any special monitor and conduct detection during manufacture process
4.Provide 100% free insurance for internal transportation;
5.OEM & ODM is welcome
6.Small order can be supplied
1).Q:Are you a manufacturer or trading company?
A:We are a professional manufacturer,research,development and sales of military and consumer cable wire and cable compound.The company is located in Hunan Province,China
2).Q:What is your company's strengths?
A:We are a stable wire and cable supplier of China's aerospace and military,21 years experience,cable compounds produced by ourselves,This is how we keep superior quality and competitive offers for global valued customers.
3).Q:How do you guarantee your product quality?
A:Quality is our priority,we treat quality control as the first most important thing from the very beginning to the very end.In design,materials procurement,manufacturing semi-finished products testing,finished product inspection such as strick control to ensure product quality.
4).Q:What's the warranty of your products?
A:We provide 1 year complete warranty service,If the products have quality problems,We plant to replace or return unconditionally.
5).Q:How can I get the samples?
A: We can make the sample order for you. And if the sample qty is small and available in our stock, we can provide you by free, but the freight should be absorbed by your side.
